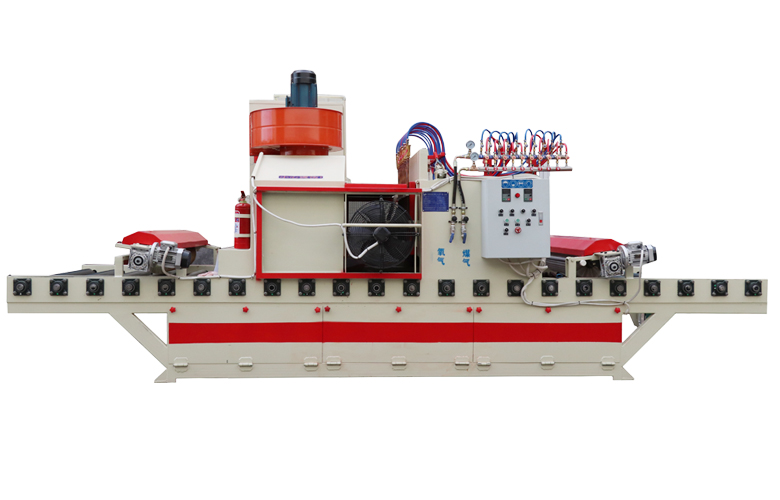

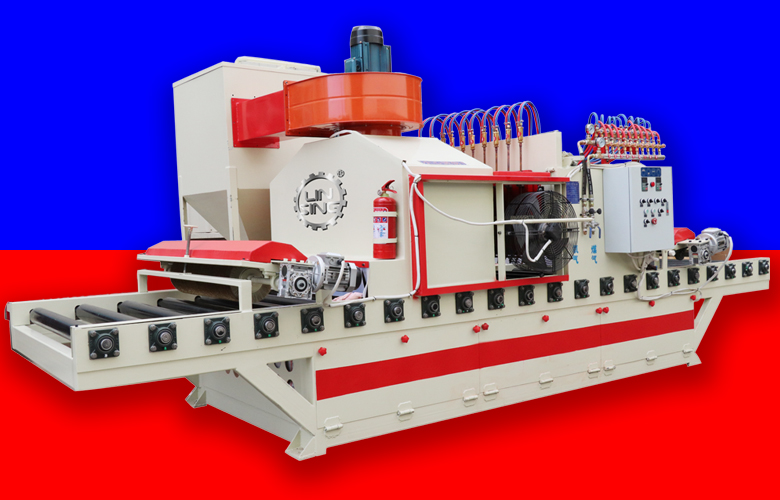

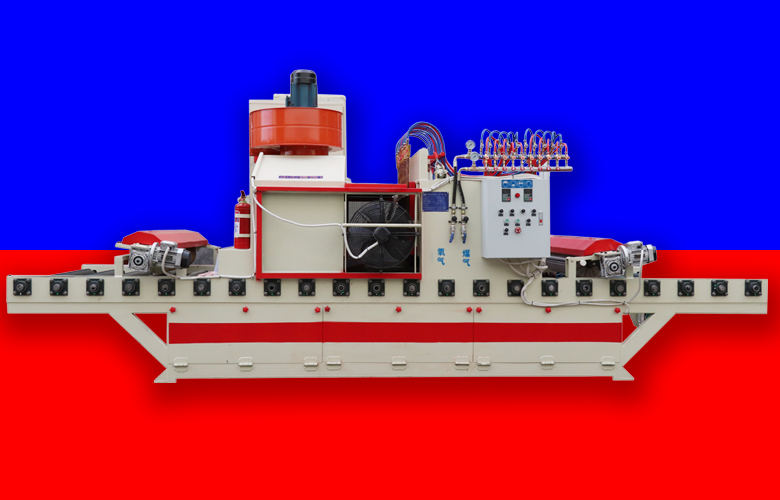

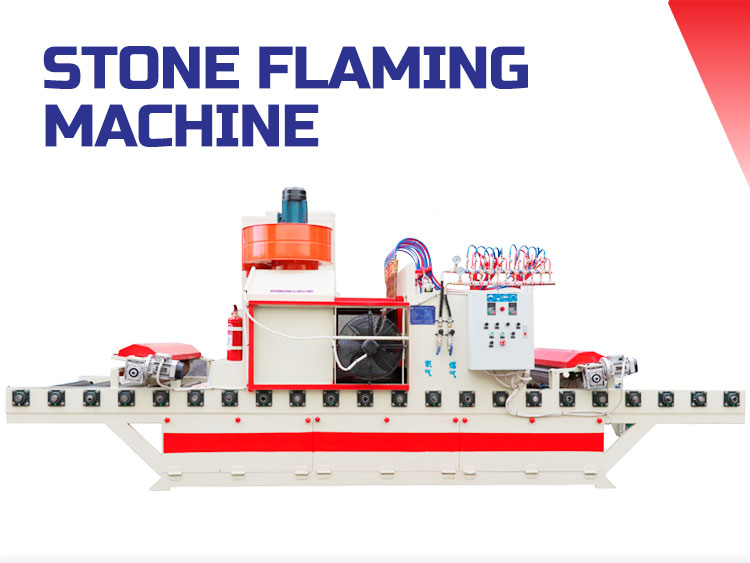

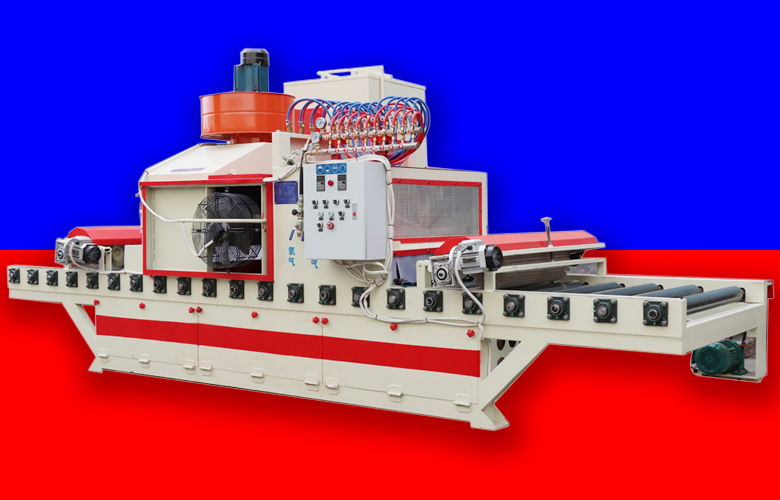

Full-Automatic Stone Flaming Machine

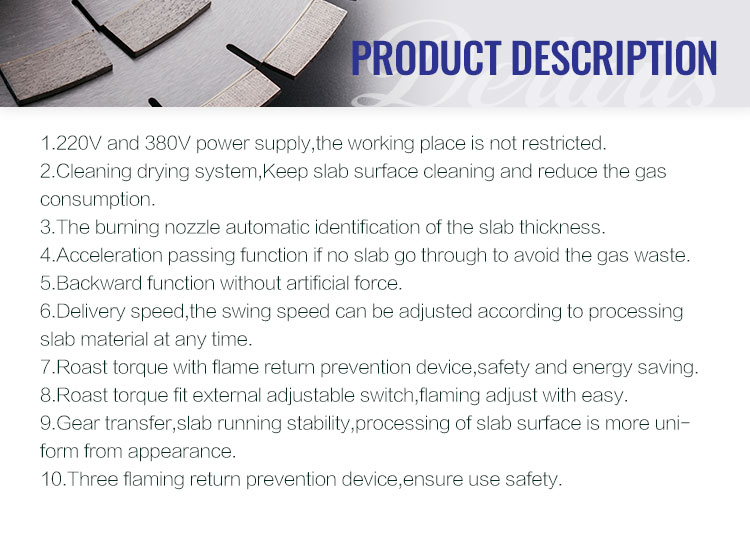

Product Features:

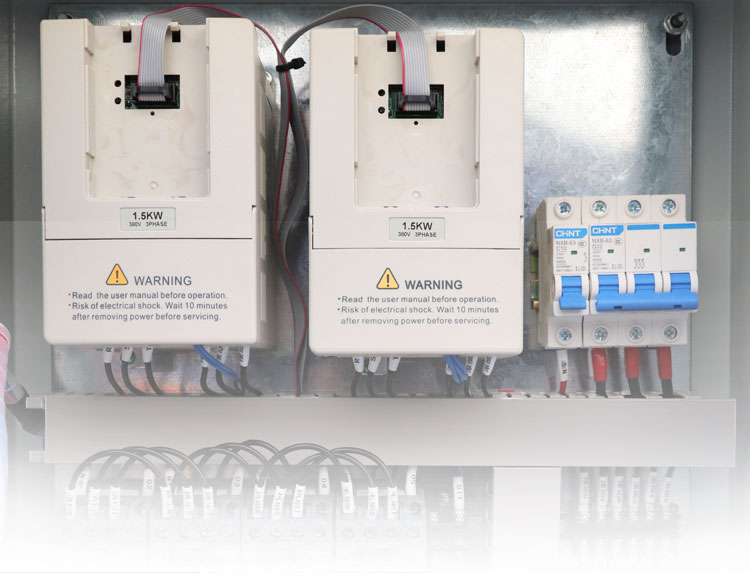

1.220V and 380V power supply,the working place is not restricted;
2.Cleaning drying system,Keep slab surface cleaning and reduce the gas consumption;

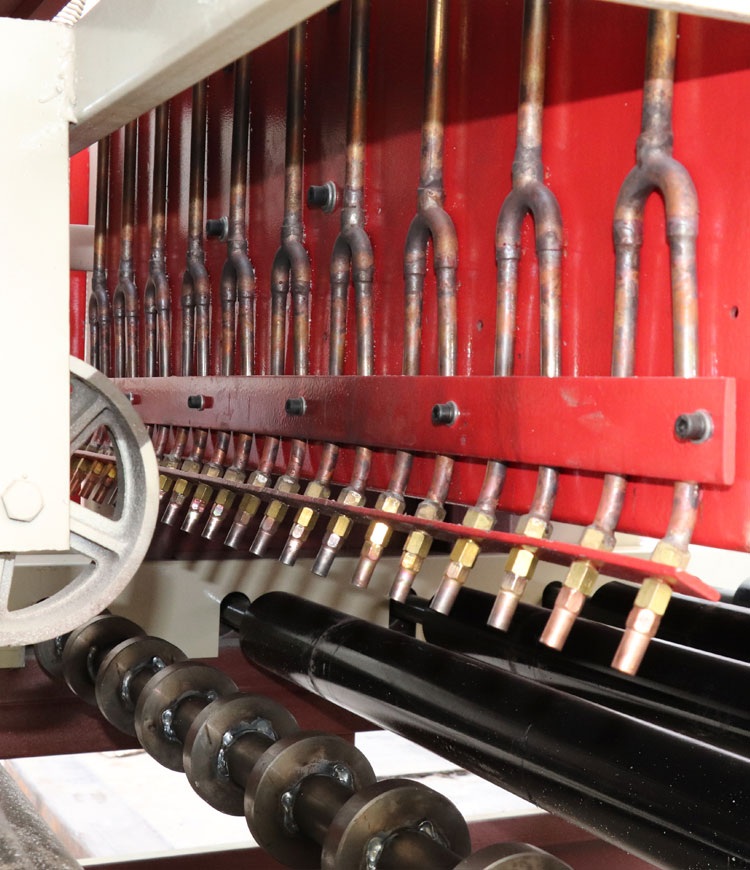

3.The burning nozzle automatic identification of the slab thickness;
4.Acceleration passing function if no slab go through to avoid the gas waste;
5.Backward function without artificial force;
6.Delivery speed,the swing speed can be adjusted according to processing slab material at any time;

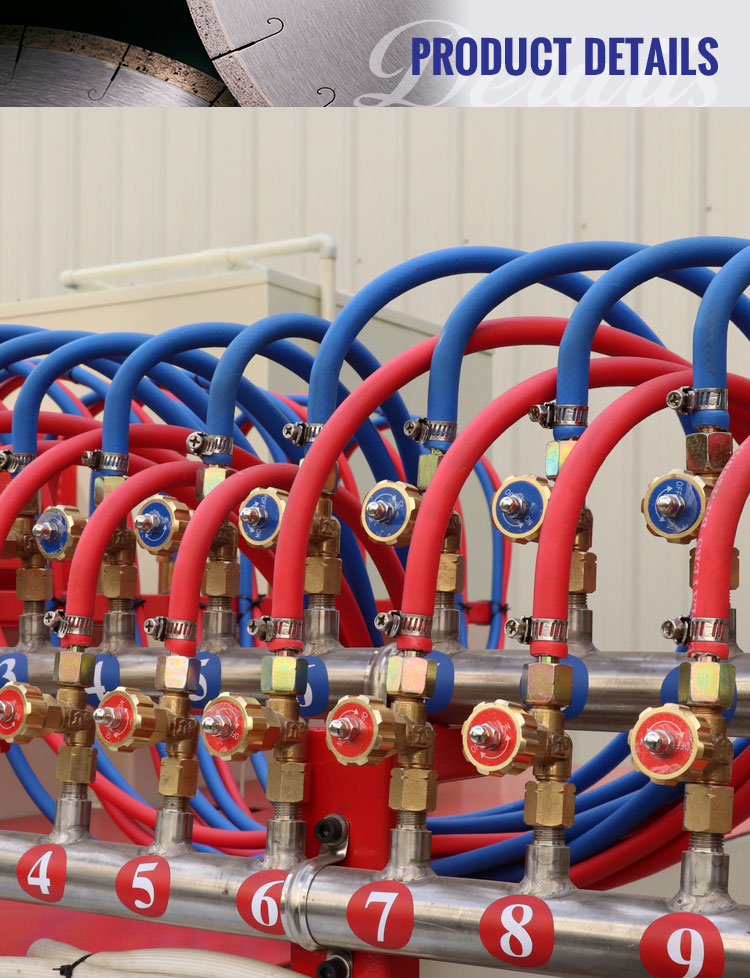

7.Roast torque with flame return prevention device,safety and energy saving;
8.Roast torque fit external adjustable switch,flaming adjust with easy;
9.Gear transfer,slab running stability,processing of slab surface is more uniform from appearance;
10.Three flaming return prevention device,ensure use safety.

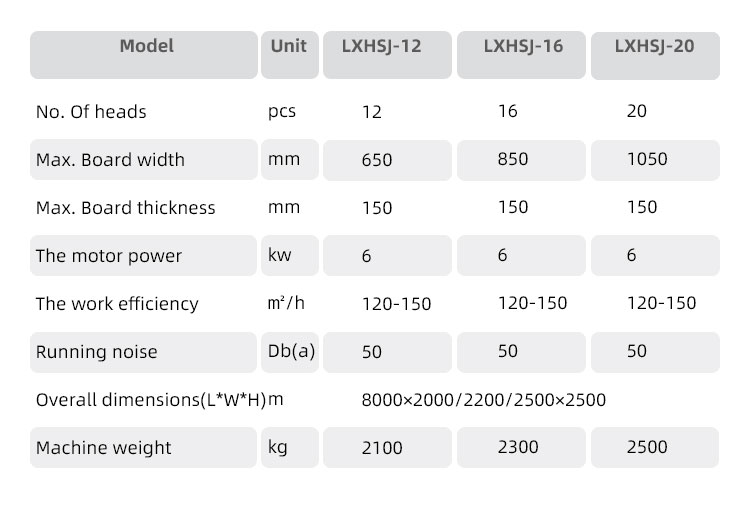

Product Specification:
Type | Unit | LXHSJ-12 | LXHSJ-16 | LXHSJ-20 |
No. Of heads | pcs | 12 | 16 | 20 |
Max. Board width | mm | 650 | 850 | 1050 |
Max. Board thickness | mm | 150 | 150 | 150 |
Motor power | kw | 6 | 6 | 6 |
Work efficiency | ㎡/hour | 120-150 | 120-150 | 120-150 |
Running noise | Db(a) | 50 | 50 | 50 |
Overall dimensions(L*W*H) | mm | 8000×2000×2500 | 8000×2200×2500 | 8000×2400×2500 |
Weight | kg | 2100 | 2300 | 2500 |
