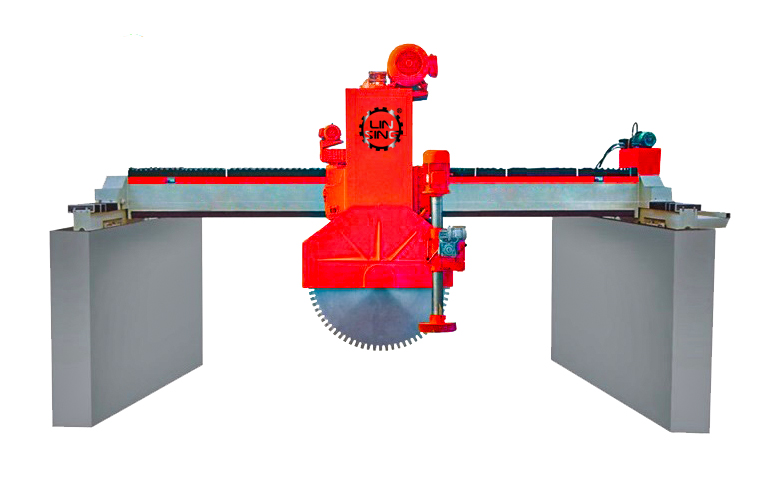

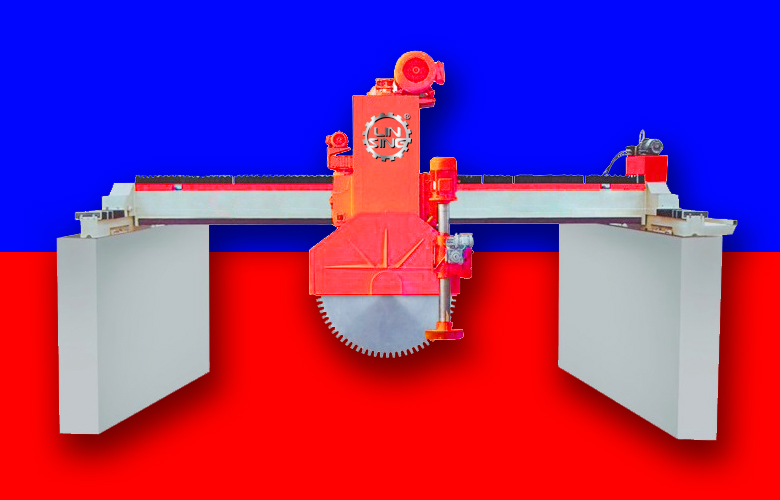

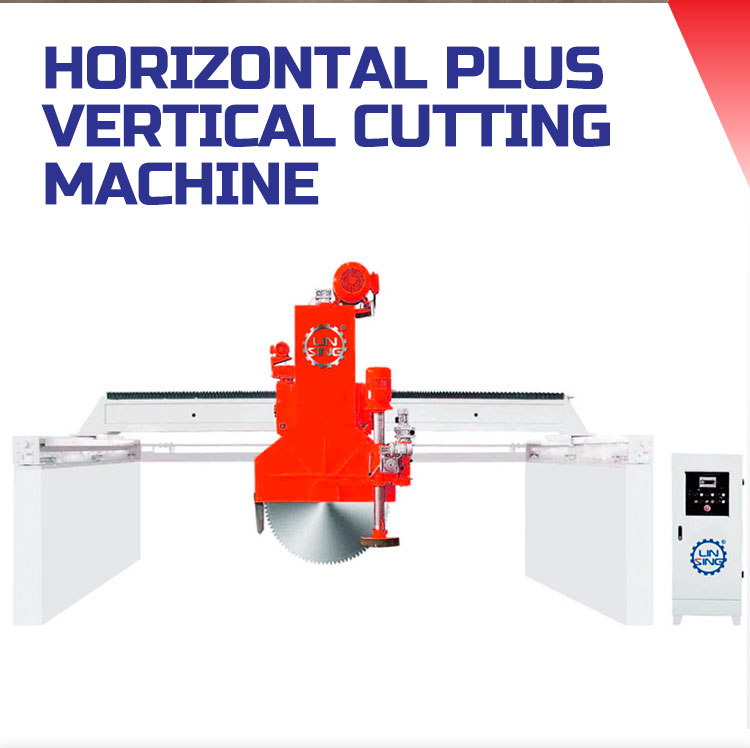

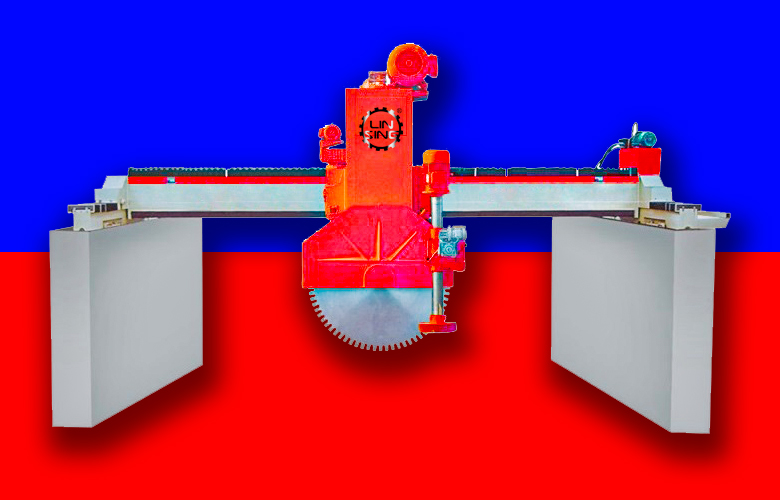

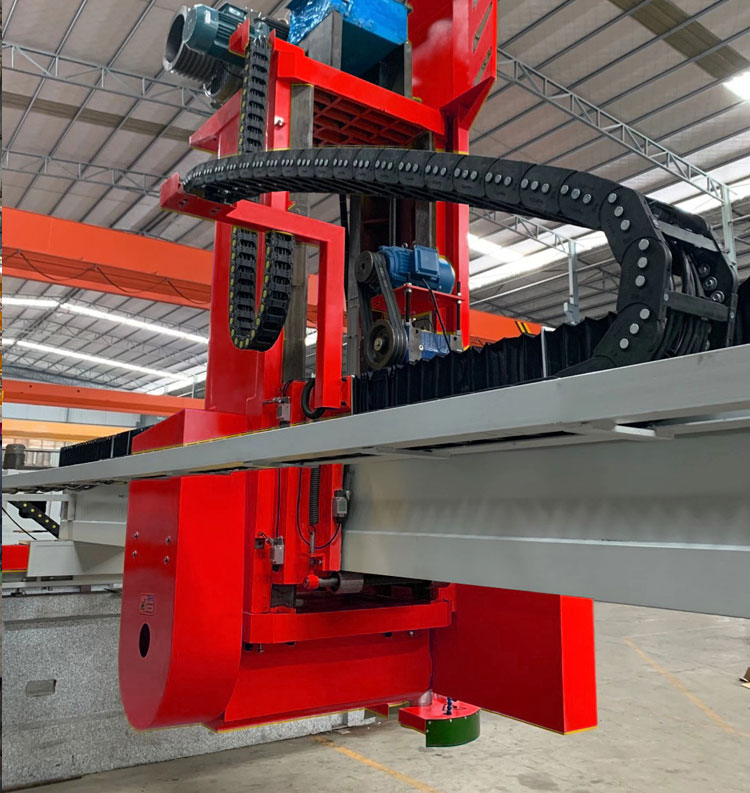

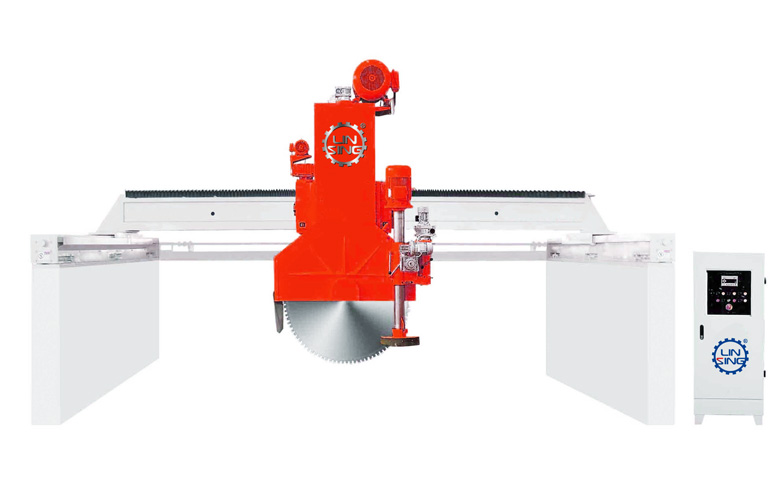

Horizontal Plus Vertical Bridge Saw Machine
Product Features:

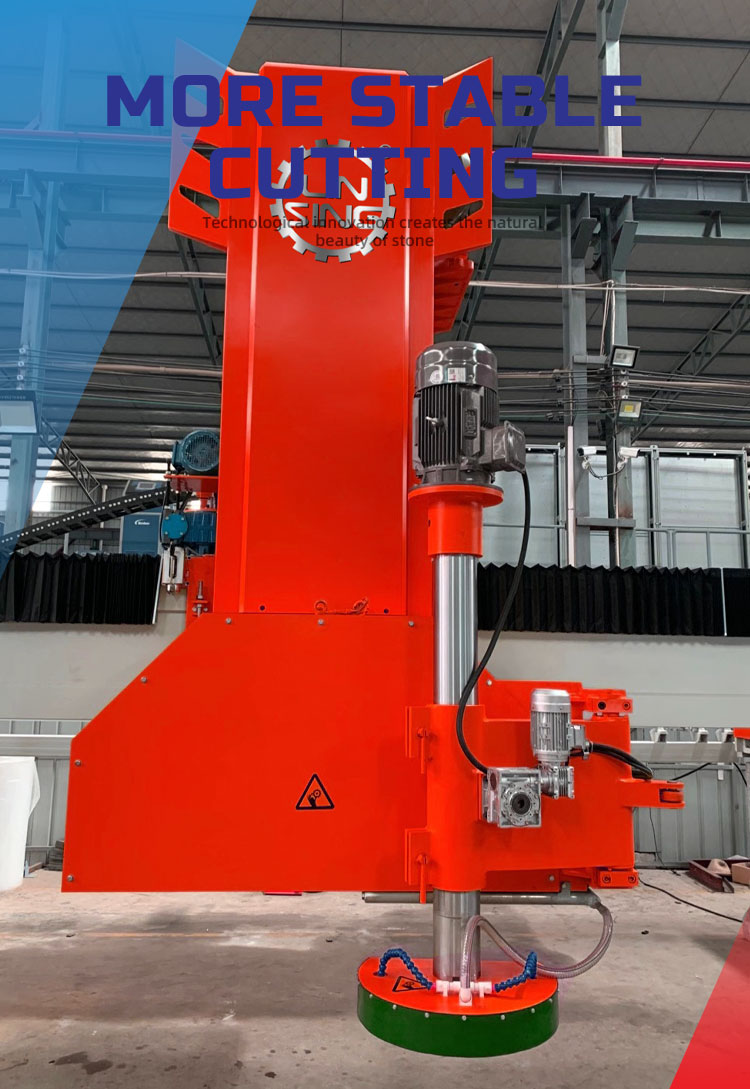

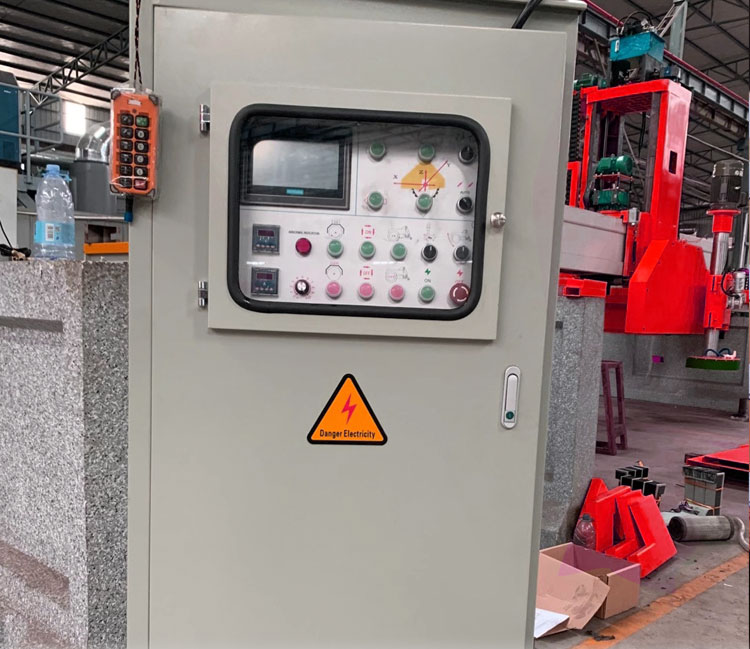

Horizontal plus vertical bridge saw machine adopts PLC programmable control system, man-machine integrated touch screen interface, supplemented by ultra-high precision rotary encoder positioning slice, left and right cutting speed control by inverter, adjust the speed by stone material, up and down using hydraulic Combined with chrome-plated guide pin + wear-resistant guide sleeve sliding up and down, with a small gap wear, and multi-layer seal design in the guide sleeve, waterproof and dustproof anti-spill, improve service life, automatically slice, blocks can be set directly on the ground, to save the cost of table and maintenance. High-speed movement parts are high-quality imported spare parts, so it has a high cutting efficiency, high-precision cutting, high stability, easy operation and flexible and etc., especially for high-value large-size granite , Marble slabs processing.

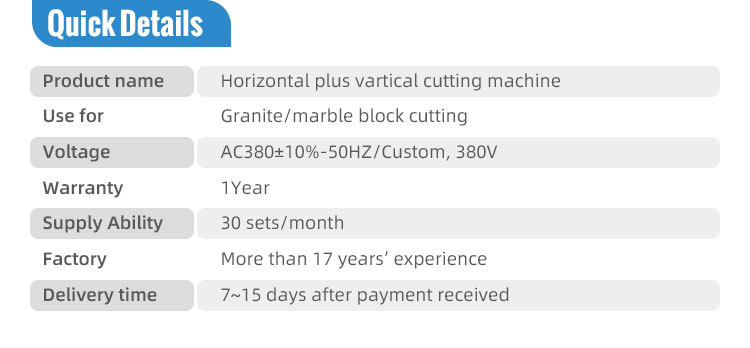

Product Specifications:
| Model | Unit | QSQ-1200 | QSQ-1600 |
| Max. diameter of blade | mm | 1200 | 1600 |
| Max. no. of blade | pc | 1 | 1 |
| Main motor power | KW | 55/75 | 90 |
| Max. vertical stroke | mm | 1350 | 1400 |
| Crossbeam length | mm | 7260 | 7260 |
| Max. cutting size(LxW) | mm | 3800x2100 | 3800x2500 |
| Diameter of horizontal blade | mm | 400-600 | 400-600 |
| Main motor power | kw | 11 | 15 |
| Vertical stroke | mm | 850 | 1100 |
| Dimensions (LxWxH) | mm | 7500x4350x6500 | 7500x5000x5500 |
| Water consumption | m³/h | 15 | 16 |
| Approximate weight | KG | 9000 | 13500 |
