Since the shape and size of the diamond segments have a great relationship, we will distinguish it according to the size, such as the application and the approximate size range for a detailed description.
Diamond segment for quarry:

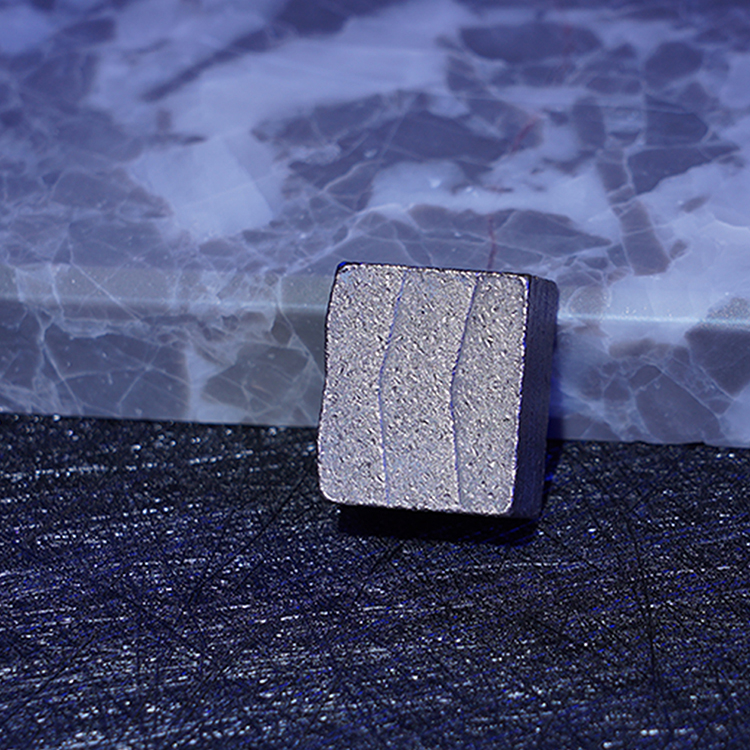

Mining segments are mainly divided into M-type segments and K-type segments. Among them, the M-type segment is more common, and its main feature is that it can speed up the diamond opening of the segment. The K-type segment also has the same effect. However, when this kind of diamond segment is used on a mining saw, the impact force on the front end of the diamond segment is relatively large, while the impact force on the end is relatively small. In this case, the problem of the diamond segment falling easily occurs. In this case, the problem of segment falling is easy to occur, and it will cause some stress problems due to uneven force on the blank blade, which will eventually shorten the service life of the saw blade, so this type of segment has gradually withdrawn from the market.Diamond segment for cutting slabs:
M-shaped, parallel and semi-circular segments are more common. Among them, the M shape is widely used in granite processing. The advantage is that the diamond opening is fast, and the disadvantage is that the life of this kind of segment will be slightly shorter than that of the parallel segment. The parallel segment is mainly used for marble processing, mainly because most of the marble segments will be diamond opened in the factory, so there is no problem of diamond open, so it is more suitable to choose a parallel shape mold. The round segment is also for better diamond opening, but it is not as good as the M-shaped segment. But the advantages are also obvious. During the cutting process, the protection of the segment is better, and the force on the segment is more uniform. After long-term experiments, the segment of this shape tends to transition very smoothly in the early stage of cutting, and the service life of the blank blade will also be slightly improved. But the disadvantages are also very obvious. The circular segment needs to open a new mold, and the audience is small. At present, the market still prefers the traditional shape of the segment.
Middle diameter saw blade segment:
There are many shapes of medium-diameter saw blade segments. At present, we commonly use the following types:
1. V-shaped, this kind of segment design is to increase the cutting sharpness of the segment, but it reduces the continuity of the saw blade and the service life of the saw blade. In addition, it can only be used for medium-hard stone materials.
2. R type, this kind of segment is also called fan-shaped segment. It is mainly used for marble cutting. The saw blade using this kind of segment has very good continuity, often has a long cutting life and high cutting quality, but the cutting efficiency is very low. It is often used to cut brittle stone or tiles, such as some marble or ceramics.

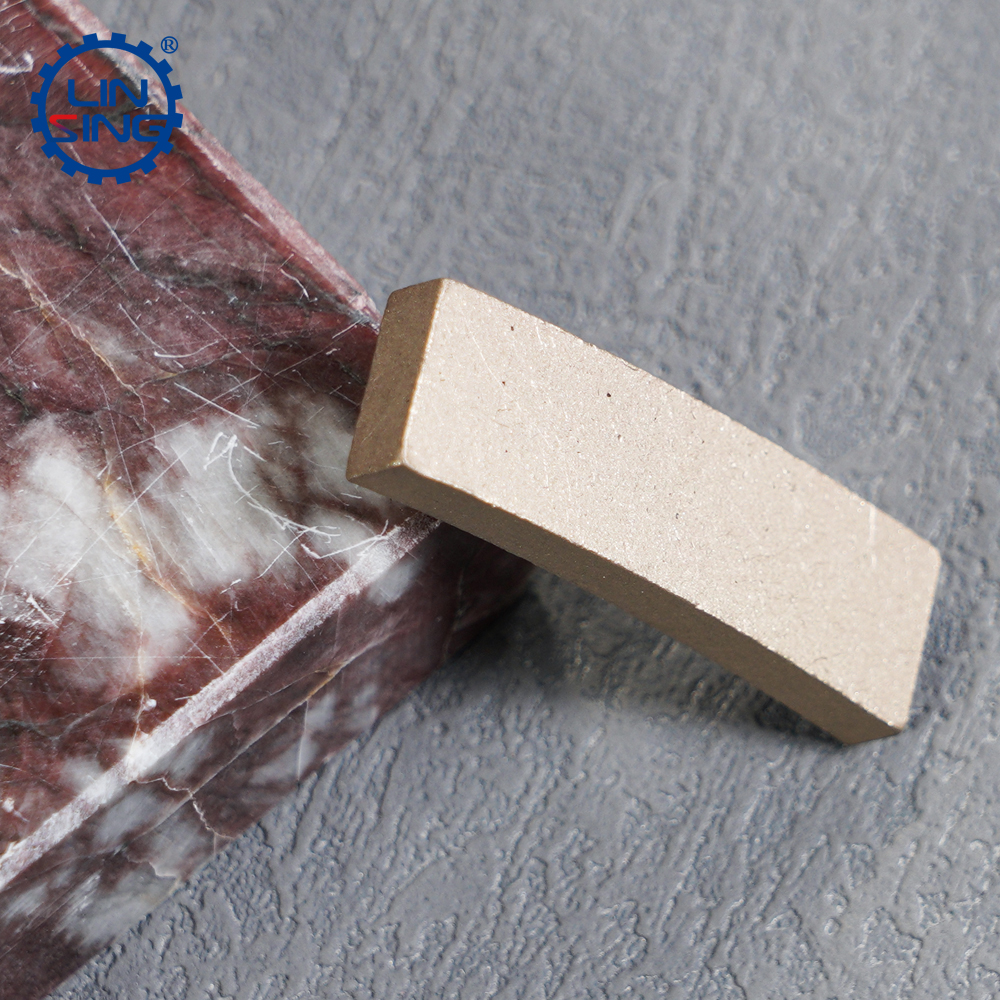

3. Arc type, this kind of segment is widely used in 30-40mm long segment. The main feature of this kind of segment is that while maintaining a certain sharpness, it also takes into account the cutting quality of the saw blade. It is also the most commonly used cutting tooth for granite stone. Of course, many medium-hard and hard marbles will also be cut with this kind of segment.
4. Turbo type, this segment is widely used in concrete cutting. This kind of segment has high cutting performance, but the disadvantage is that the cutting effect is poor, and it is suitable for cutting steel-concrete or some super-hard hard materials.Diamond cutting disc segment:
1. Turbo type: This type of saw blade is quite satisfactory and can be used to cut almost all materials. It has a moderate lifespan, moderate cutting efficiency, and acceptable cutting quality, but each item cannot be perfected.
2. Continuous type: This type of saw blade has the advantages of good cutting efficiency, fast cutting speed, small cutting gap, etc., but the cutting quality and service life of this type of saw blade are not satisfactory.
3. U slot shape: This type of saw blade has good cutting efficiency, often has the advantages of fast cutting speed and small cutting gap, but the cutting quality and service life of this type of saw blade are not satisfactory.
4. Protected teeth type: This type of saw blade is mainly designed to ensure the safety of the cutting process. In the process of use, under the condition of ensuring safety, the original parameters of the saw blade should be kept as much as possible, so there are turbo type protected teeth type discs, segmented protected teeth type discs, etc. But the disadvantage is that the price of this kind of protected teeth type disc is more expensive.
Linxing Diamond Tools Co., Ltd. provides all the above-mentioned diamond segments and saw blades. Welcome customers to come to consult and order products.
